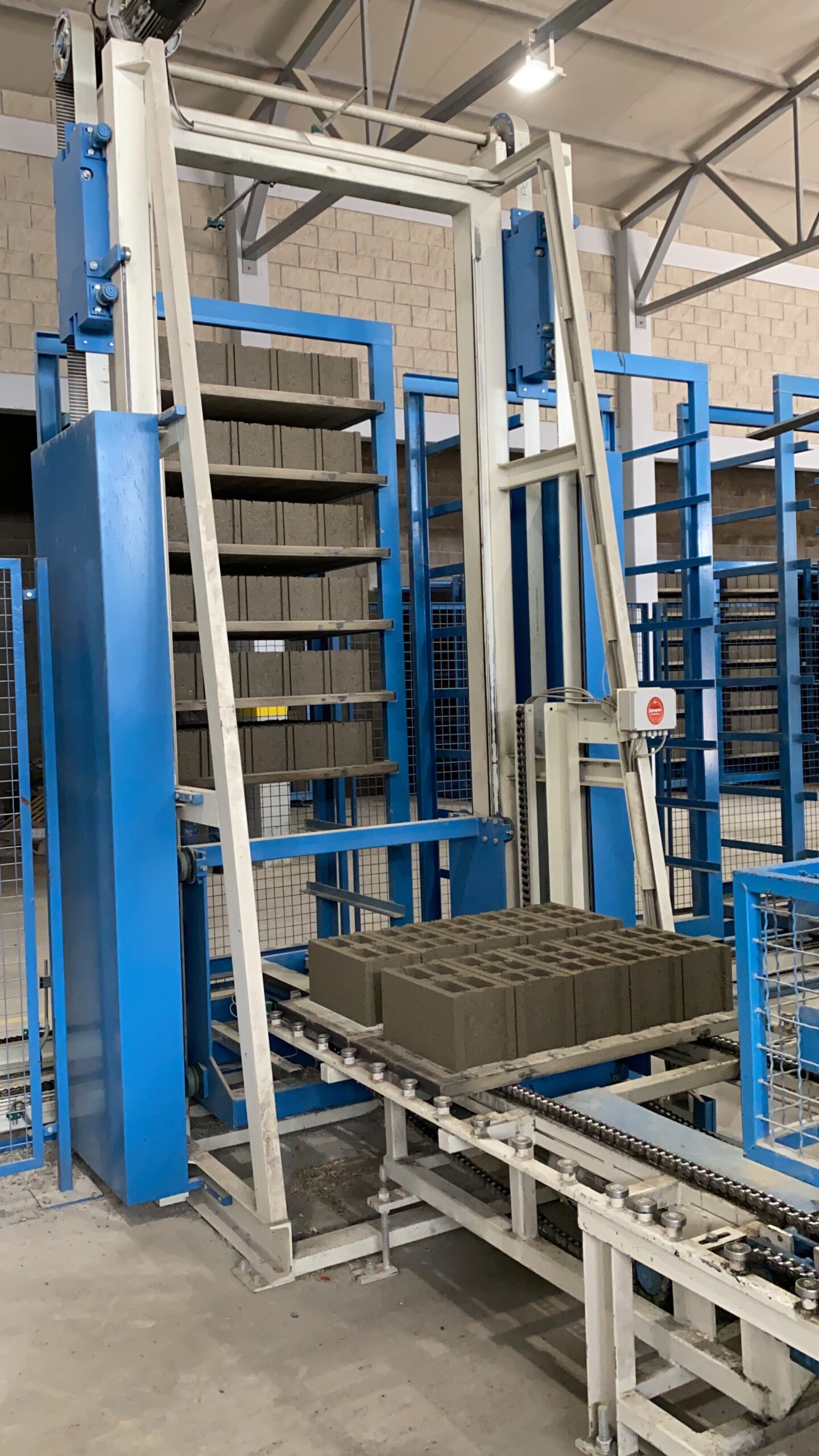

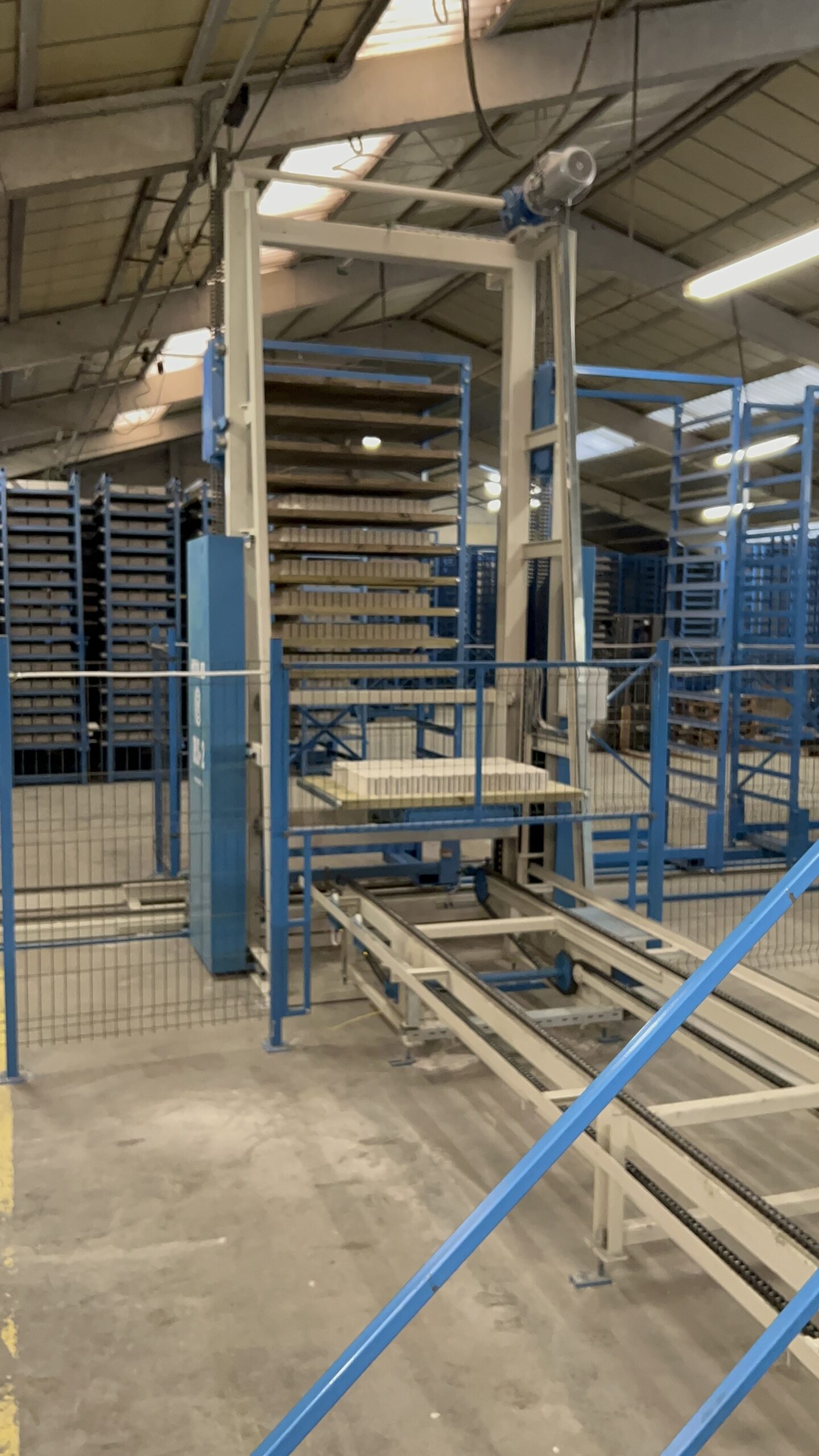

METALIKA designed Elevators for handling boards with concrete products in automatic concrete product manufacturing line.
METALIKA RS-2 elevators transfer production boards with fresh concrete products in cassettes and remove production boards with dry concrete products from cassettes.
Elevator for concrete products is designed to handle two boards 1200x550mm or one production board 1400x900mm, on customer request can be upgraded for bigger dimensions of production pallets (boards).
RS-2 elevators are perfect solution for automatic concrete block manufacturing lines with our KRS system (forklift rack system with cassettes).
How it works?

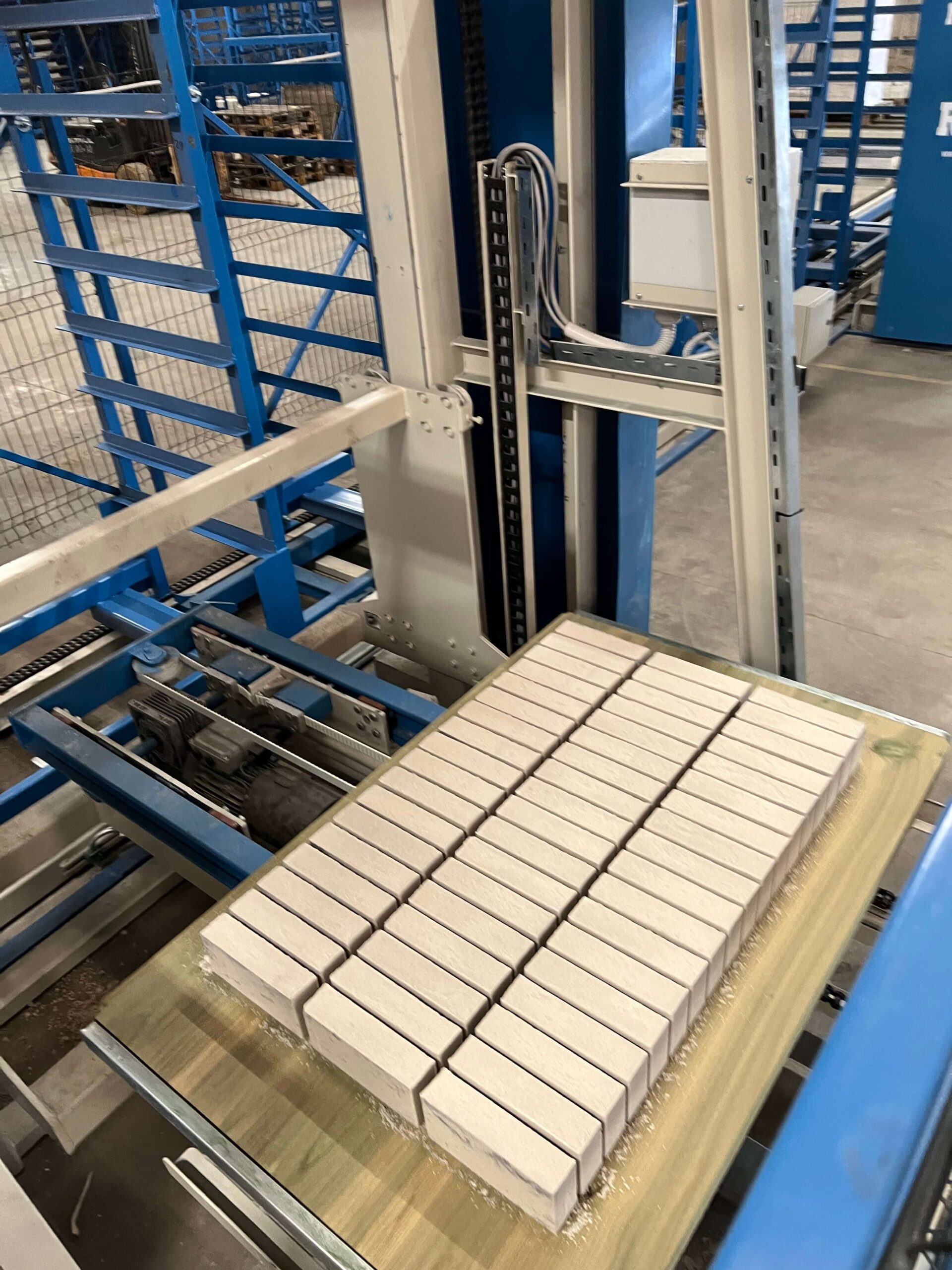

RS-2 Lowerator pulls out one or two production pallets with dry concrete products from each row of the cassette and positions them on a transport conveyor that transports the production pallet with concrete products to the ASP-1000 automatic station for packing concrete products. Lowerator in the event of a stall (if the forklift operator does not remove the packed transport pallets from the Heavy Duty Conveyor) and the ASP-1000 station does not arrive to pack the previous concrete products from the production pallet board, the RS-2 Lowerator will stop above the transport conveyor until the process resumes.
RS-2 is extremely fast elevator for handling boards with concrete products (concrete blocks, curbstones, pavers, and other concrete products), METALIKA designed equipment RS-2 for handling concrete products to be suitable for all our automatic concrete block machines RVP-2000, RVP-3000 and RVP-5000.
Different configurations your advantage on the market
