System for returning boards in concrete block machine consist:
1.Conveyor for transfer production boards with concrete products from lowerator to cubing equipment and from cuber to production board turner unit.
2.Production board turner (Pallet turner unit).
3.Conveyor for transfer production boards from production board turner unit to production board feeder on block machine.
4.Rotation brush station for cleaning production boards before inserting in concrete block machine.
5. Oiling production board station for spraying surface after cleaning, before inserting in concrete block machine (clean surface of production board is extremly important to manufacture high quality concrete products).
METALIKA can modify equipment for concrete product handling and transfer system on customer request, this standard system for returning production boards is in-line for configuration with automatic concrete block making machine.
How it works?
Conveyor transporting production boards with dry concrete products from lowerator to concrete product cubing station, after the cuber station removes concrete products from the production board , conveyor continues to transfer production boards through the cleaning station to the production board turner (pallet turner unit).
Rotation brush station for cleaning production boards is located beetwen cuber station and production board turner.

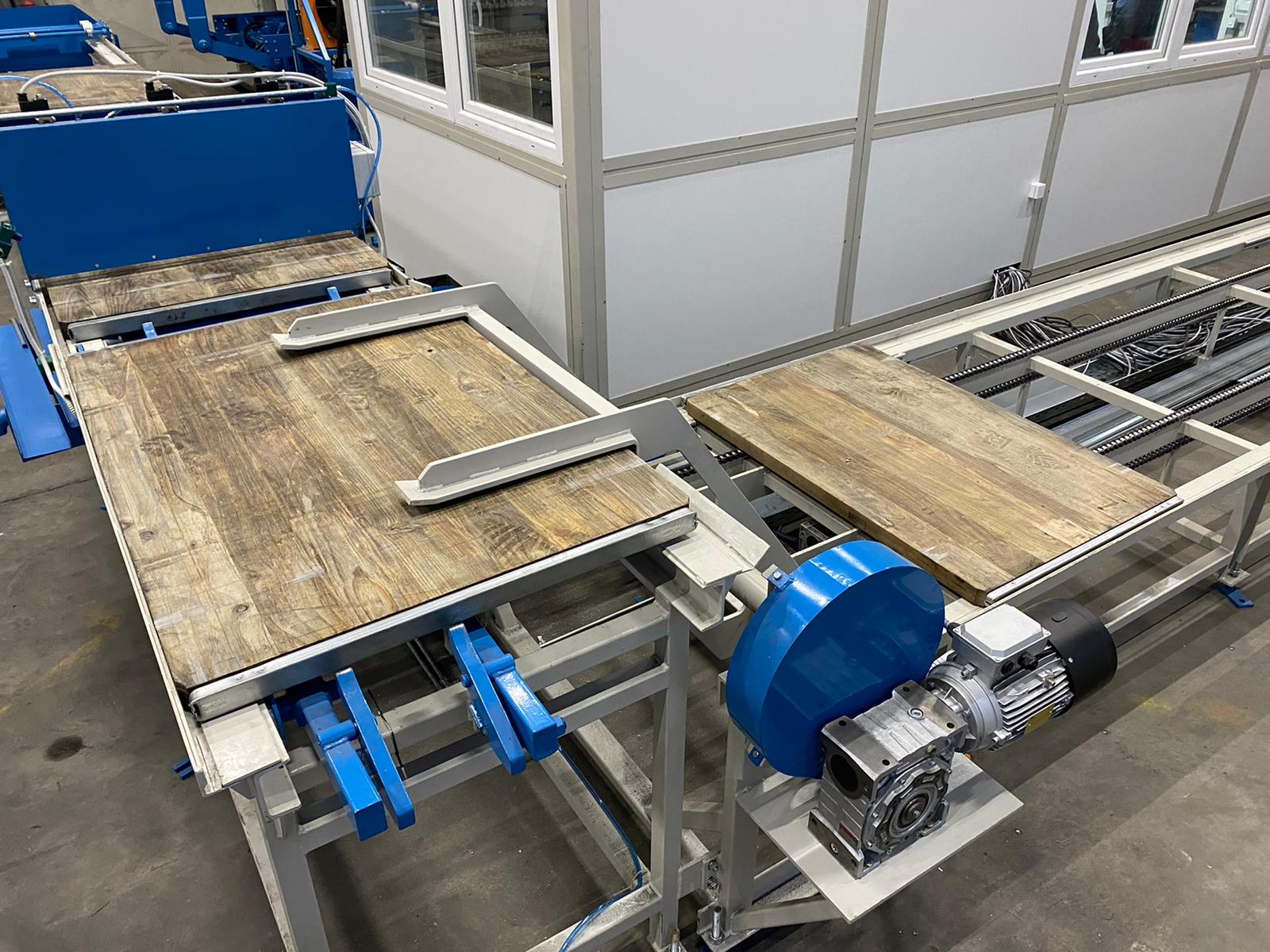

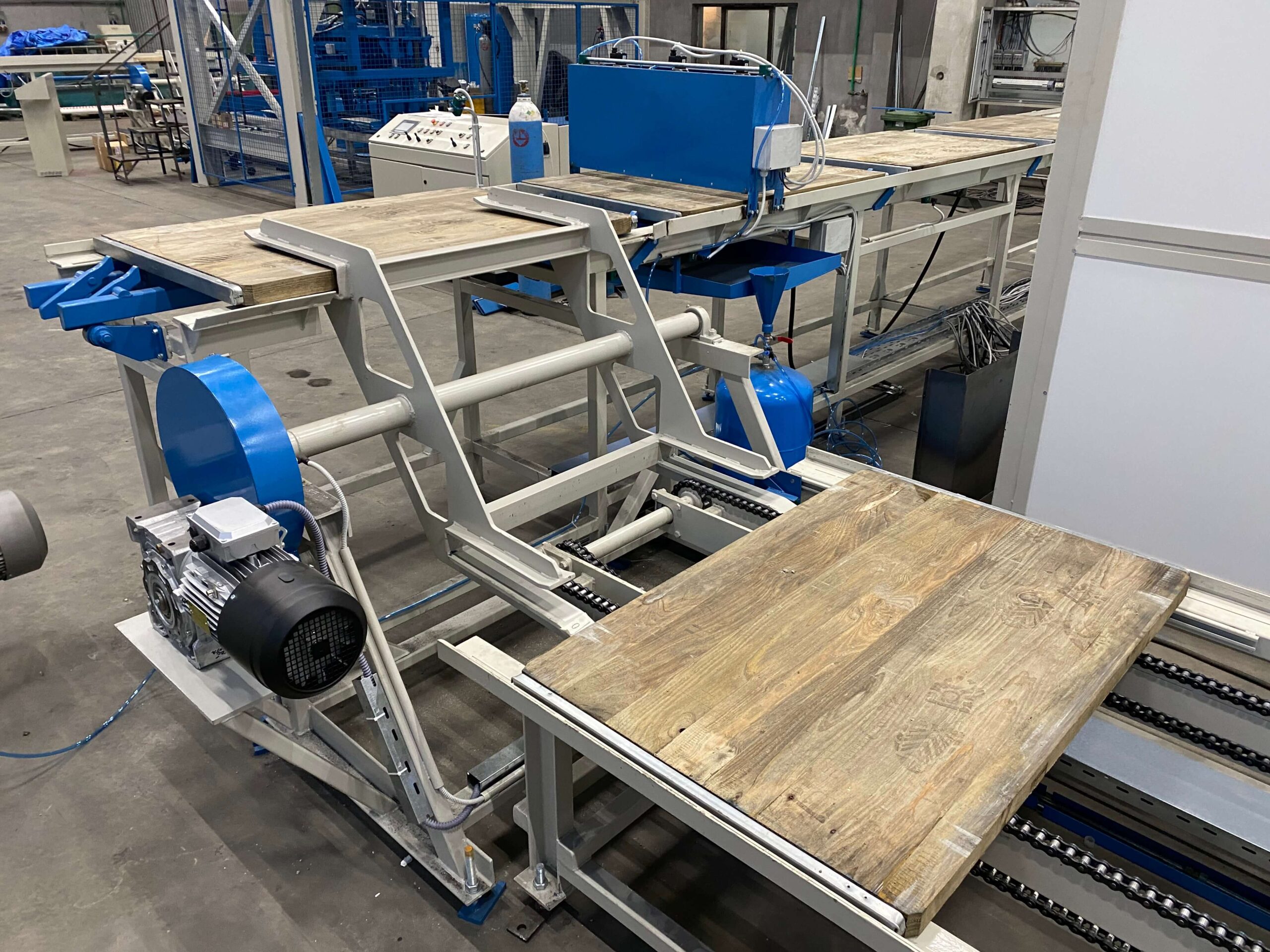

Production board tuner (Pallet turner unit) is equipment for turning production boards from conveyor that transfer production boards from lowerator on production board returning conveyor.

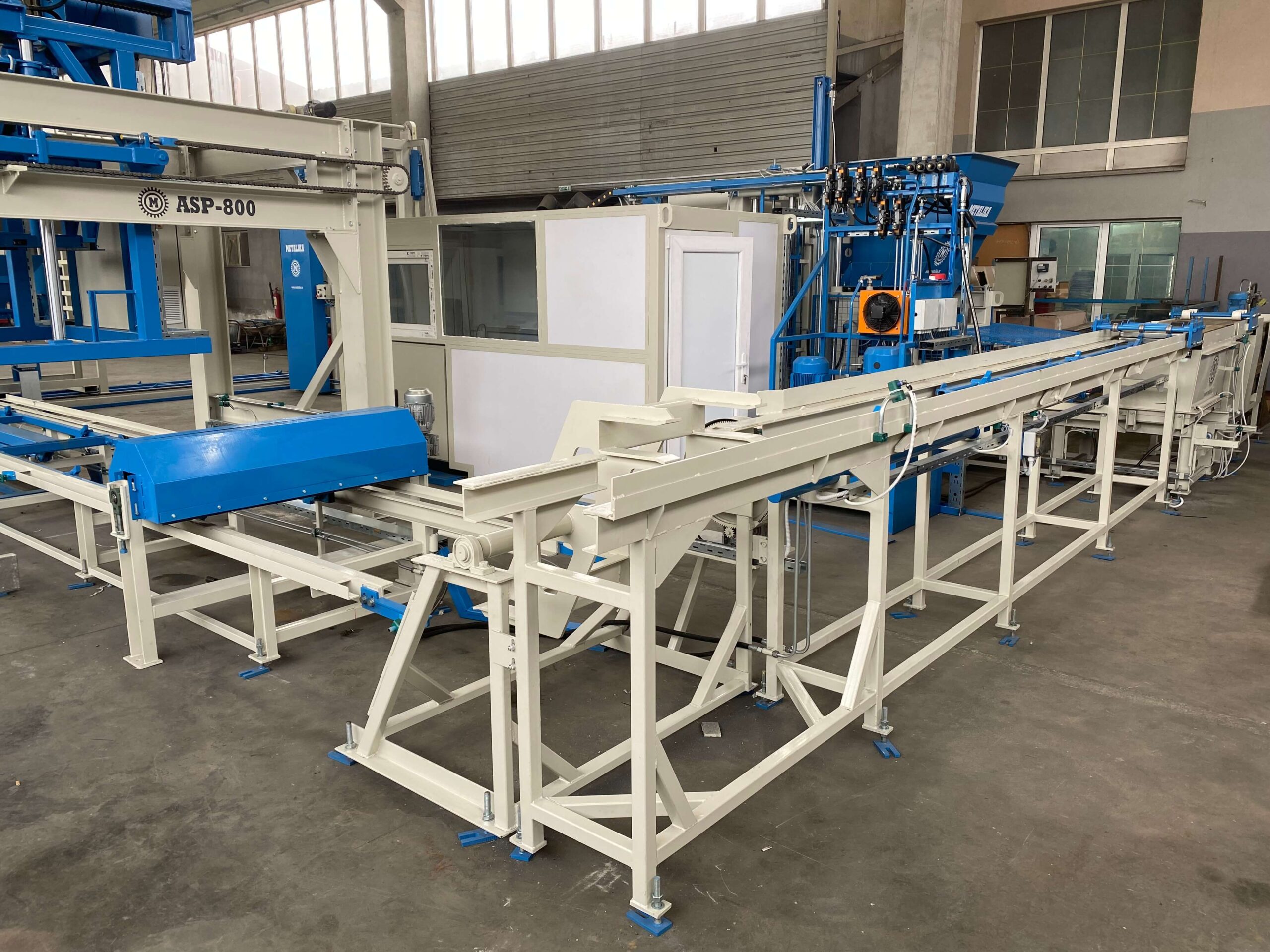

Conveyor for returning production boards in concrete block machine feeder must cross through oiling production board station. Conveyor system insert production board in pallet feeder on block machine.
Oiling production board station with nozzles have pneumatic drive. Production boards pass through station that evenly applies a certain amount of special coating to the production board for a longer lifespan of the production board and prevents the concrete from sticking.
Complete system is automatic, which is controled from centralized control room.
System for returning boards is an indispensable part of the production line where the manufacturer of concrete products wants to improve the production cycle.
Different configurations your advantage on the market
