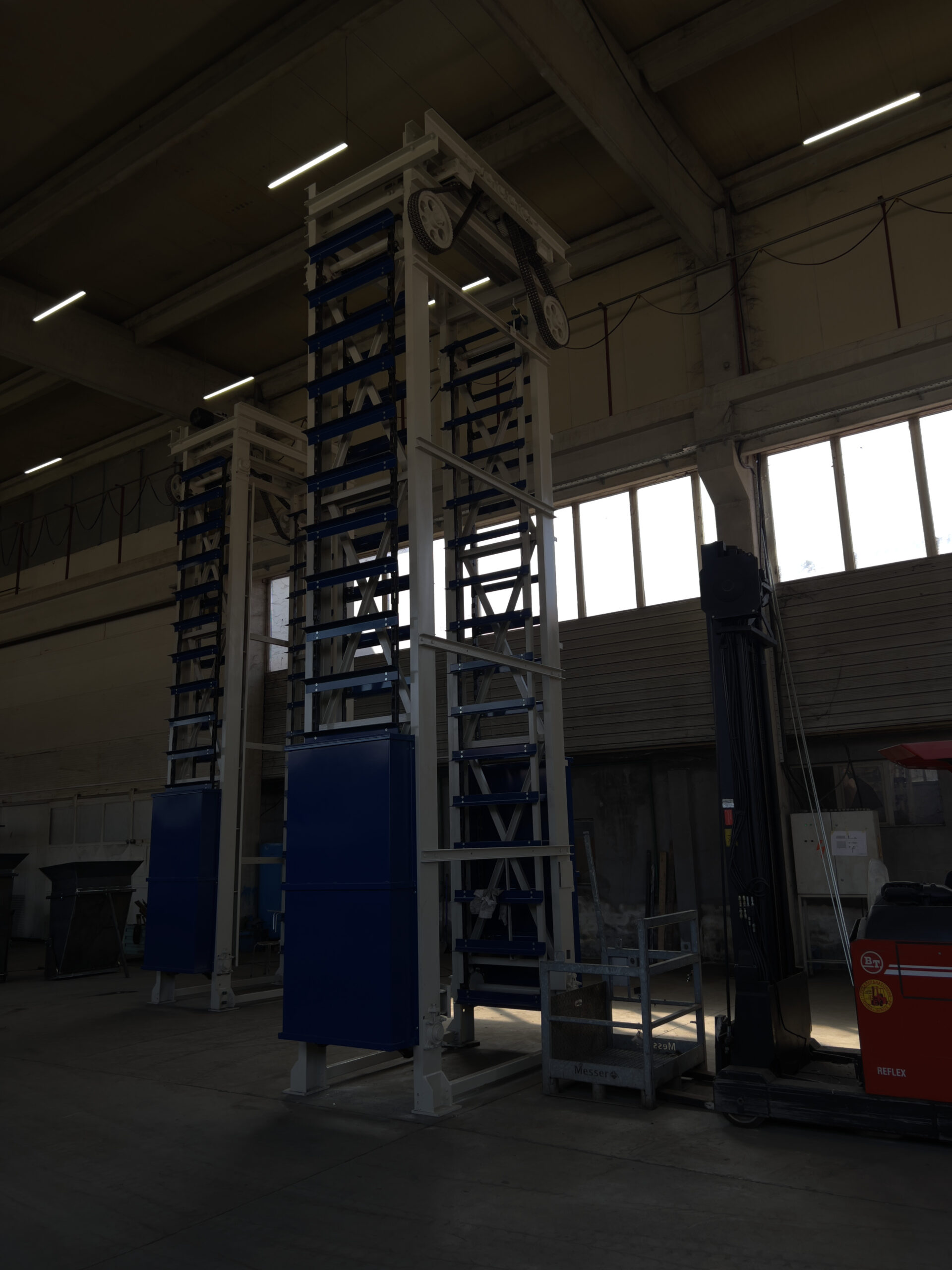

PP-15/400 Elevator for lifting production boards with fresh concrete products Elevator handling one production board – pallet on each level)
PP-15/400 Lowerator for lowering the production boards onto conveyor for transfer production boards to automatic cubing station ASP-1000
Lowerator handling one production board – pallet on each level
The frame consists of a heavy profile steel structure. Attached one electric gear motors with built-in brakes.
Double chains power the lift chains.
The lift chains are a high-performance bushing chain running in guides.
Attached are the carrying angles, which are designed to automatically center the boards.
Proximity switches and electric eyes control the elevator.
Maintenance platform, as well as safety gates.
METALIKA designed PP-15/400 elevators to be suitable for concrete block production line in configuration with Finger Car system only.
How it works?
PP-15/400 Elevator lift one production board with fresh concrete products on wet side of concrete product making line, elevator can handle 15 production boards with concrete products, when the last level of the elevator is filled – Finger Car automatic takes the fresh concrete products to the drying chamber (curing chamber).
On the way back from the chamber for drying concrete products, the Finger Car brings boards with dry concrete products and puts them into the lowerator PP-15/400.
PP-15 lowerator places one by one production board on conveyor that takes production board with concrete product in automatic cubing station.
Different configurations your advantage on the market
