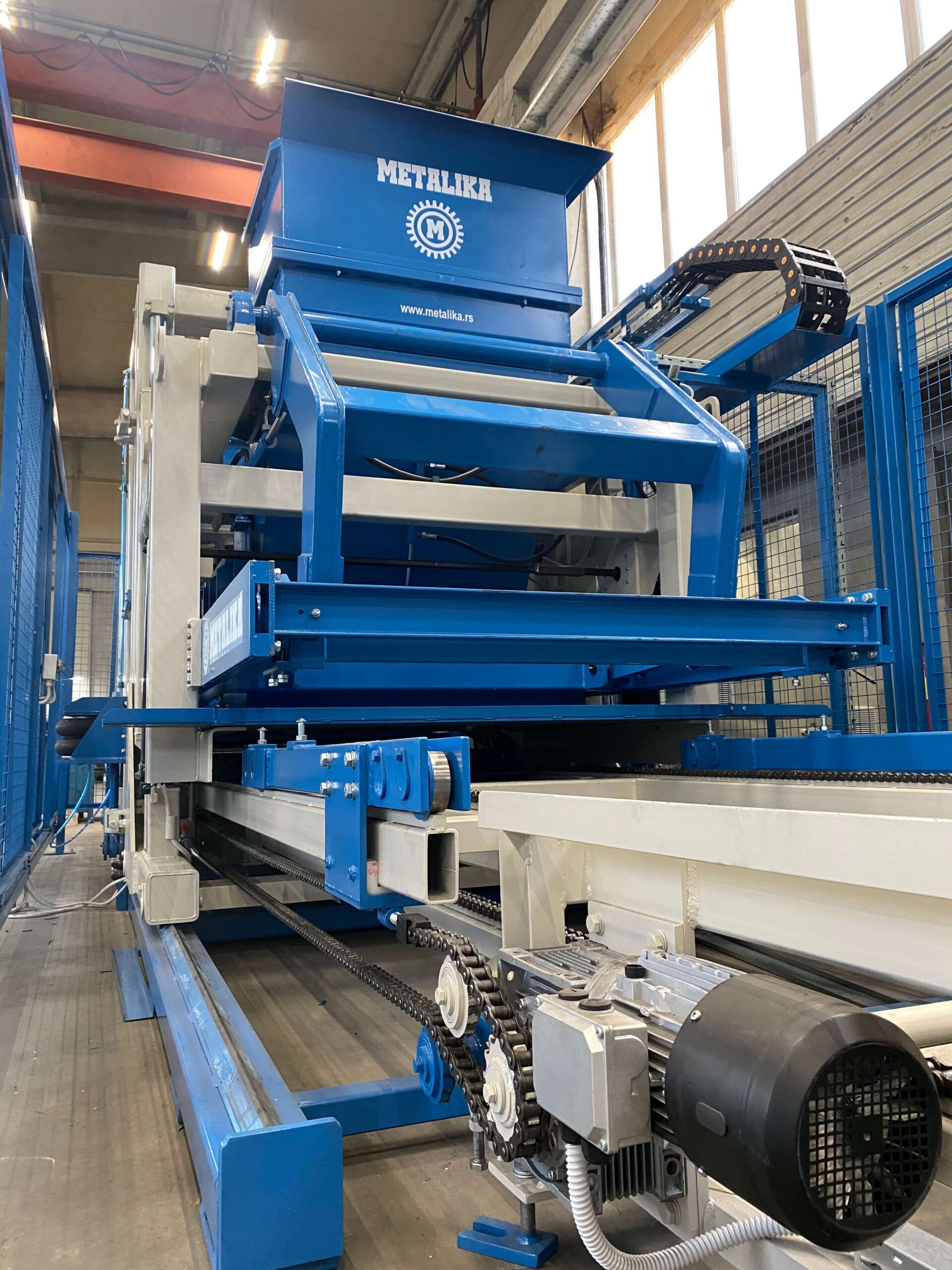

Main Features

• Standard – Pallet feeder with the possibility to adjust the speed of the pallet feeder (slow start) – Electro / Frequency regulator
• Standard – Face mix silo and base mix silo on machine
• Standard – Base mix filler box pneumatic scraper for concrete residue
• Standard – Face mix filler box scraper for concrete residue
• Standard – Agitator with hydraulic drive-in base mix filler box – rotation device in filler box, with 3 shafts, to decrease mold filling time (removable)
• Standard – Wear plates HARDOX – below face mix filler box
• Standard – Wear plates HARDOX – below base mix filler box

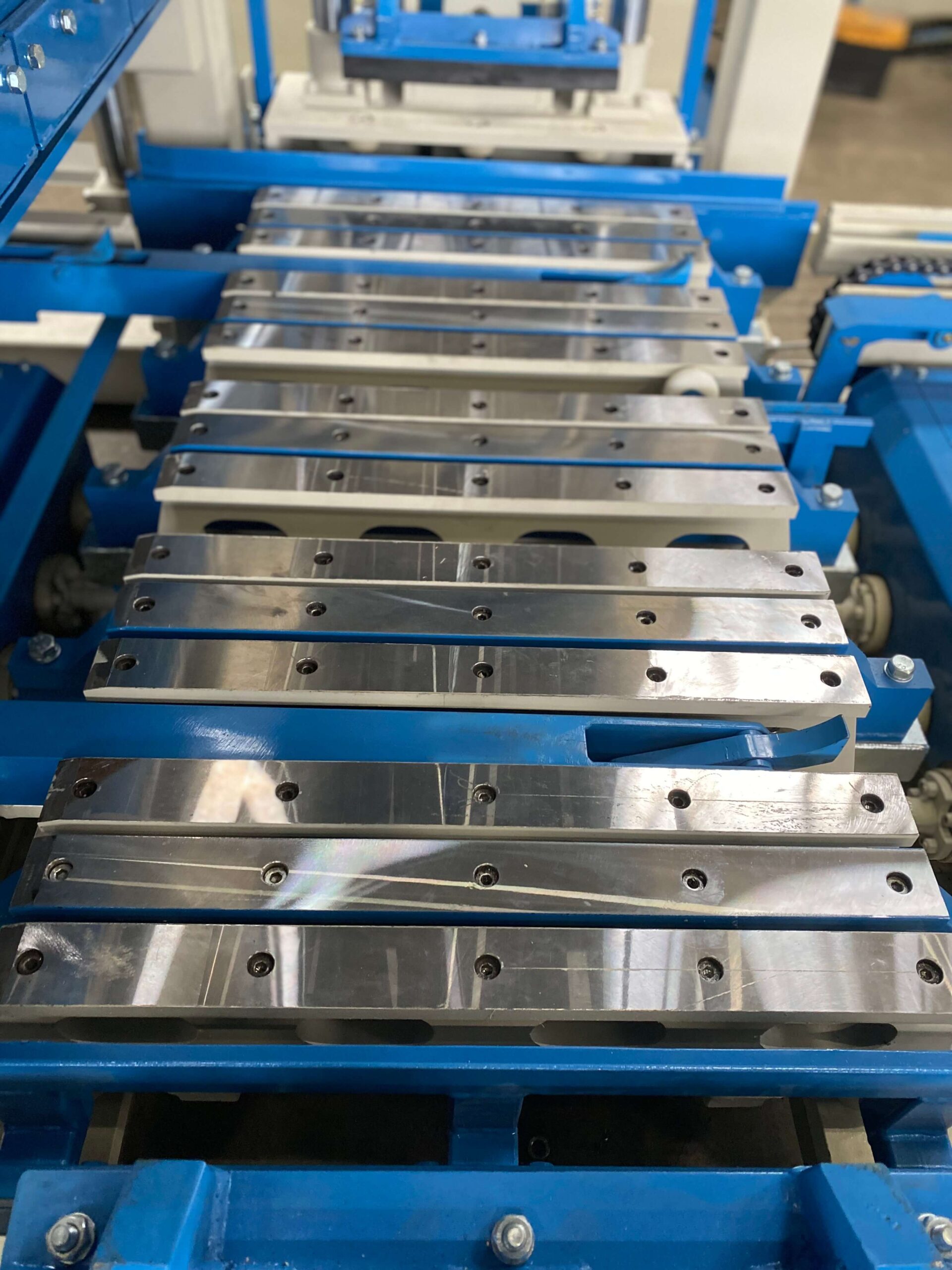

• Standard – “VARIOFLEX” vibration technology + Knocking bars, synchronized, frequency controlled – 4 weights (4 x 7.5kW engine)
• Standard – Automatic control unit for high productivity and faster cycle production (PLC and touch screen panel, high performance hydraulic power pack with two pumps, electromagnetic valves, safety sensors).

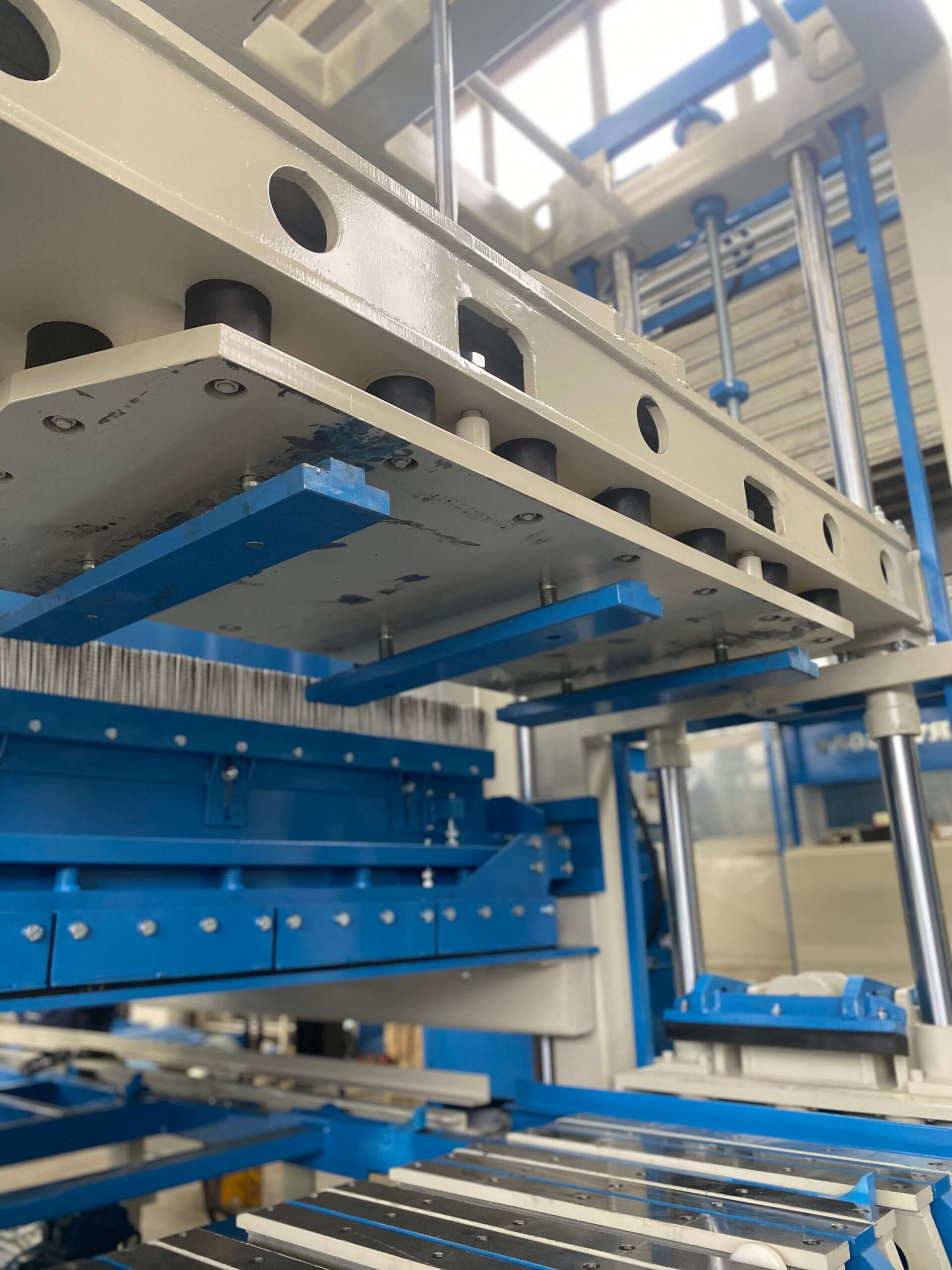

• Standard – Tamper head vibration
• Standard – Face mix filler box brush (tamper head cleaning)
• Standard – Base mix filler box brush (tamper head cleaning)
• Standard – Electric Vertical adjustment table plate and hoppers for base mix and face mix, when producing concrete product with different heights.
• Standard – Precise concrete product height control with 4 guides of mold
• Standard – Mold clamping, pneumatic (enables faster lower mold change and better vibration absorption) – without bolts.
• Standard – Hydraulic cooler
• Standard – Electrical opening face mix hopper when mold changing or for maintenance purposes.
• Standard – Modem link to “METALIKA” technical service sector (internet connection)
• Standard – Tamper head clamping, hydraulic, with mold cart (enables faster mold change) – without bolts.
• Standard – Face mix concrete filler box roller
• Standard – Proportional valves with frequency reg. – on base mix filler box and face mix filler box to increase speed and durability by enabling smooth movement of concrete filler box.
• Option – Pneumatic board stopper on vibration table
• Option – Color Mix device for face mix
• Option – Color Mix device for base mix
• Option – Cross Cleaner device for tamper head

Technical data

• Board size 1400 x 700 mm
• Useful mold area 1320 x 650 mm
• Maximum useful mold surface 0.72m2 in one print (20x20cm)
• Minimum product height 25 mm
• Maximum product height 400 mm / 350 mm curbstones
• Installed power 58kW
• Voltage (V) 3×400
• Weight 23.000 kg
• Control Automatic
• Vibration technology “VARIOFLEX” METALIKA
• Electric motors (Vibration table) ““LENZE” (IE3 type)
*The highest class of efficiency in electric motor consumption”

Capacity

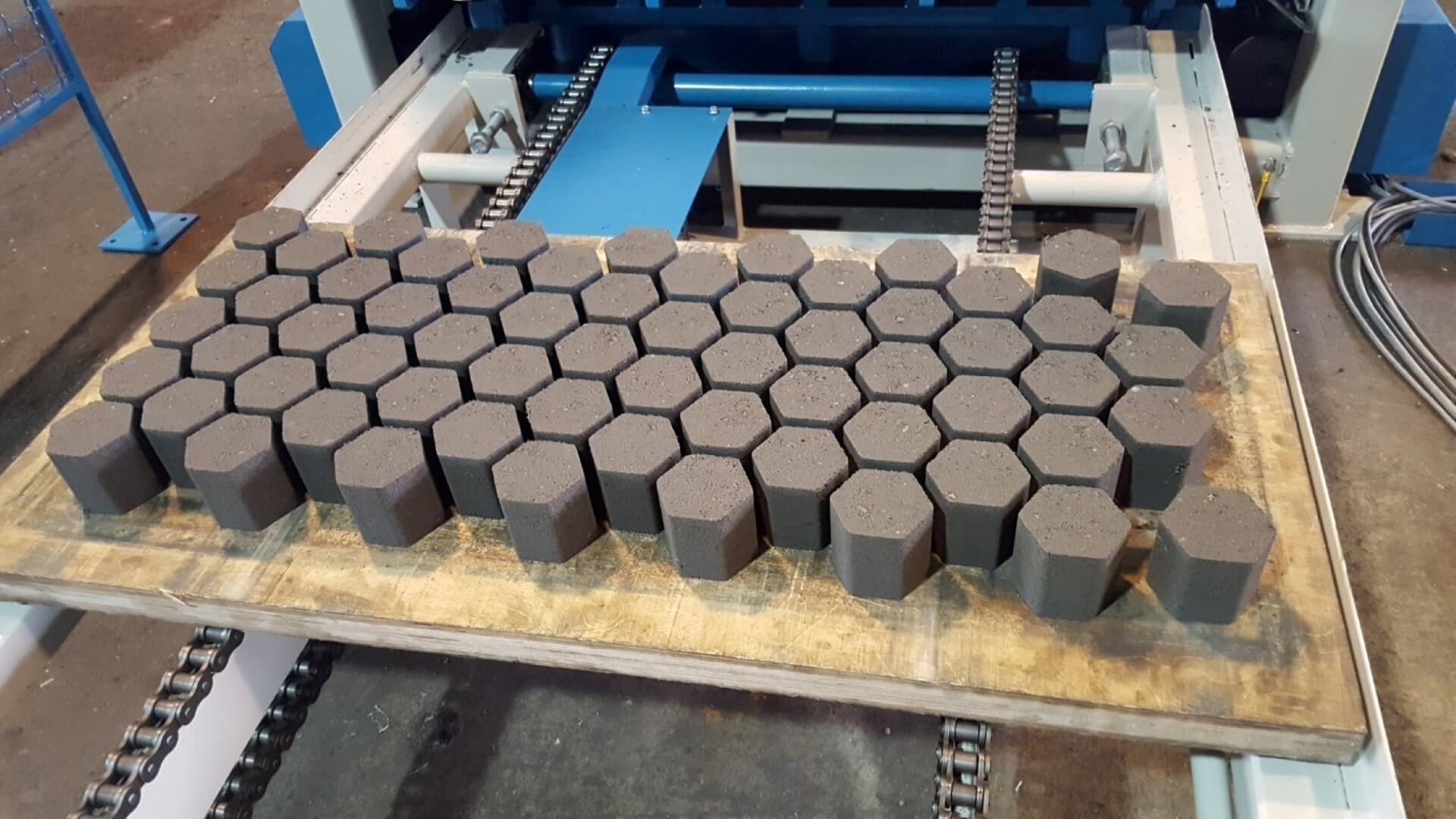

• Paving stones 10x20cm (without face mix concrete): 1.100 m²
• Paving stones 10x20cm (with face mix concrete): 936 m²
• Concrete blocks (Hollow blocks) 20x20x40cm: 12.960 blocks

* All capacities are calculated as maximum – 100% efficiency for 8 hours of operation. When calculating the real production
capacities, it is necessary to take into account the actual efficiency factor, which is approximately 80%, due to other factors that can affect productivity, such as: concrete (recipe of concrete), effective work of workers (with breaks), delivery of concrete in vibropress, concrete product design, mold features, production pallet-pad features, settings on the vibropress.

Cycle

• Pavers 10 x 20 (H-6cm): 20 seconds
• Pavers 10 x 20 (H-6cm): 17 seconds
• Hollow block 20x20x40cm: 20 seconds

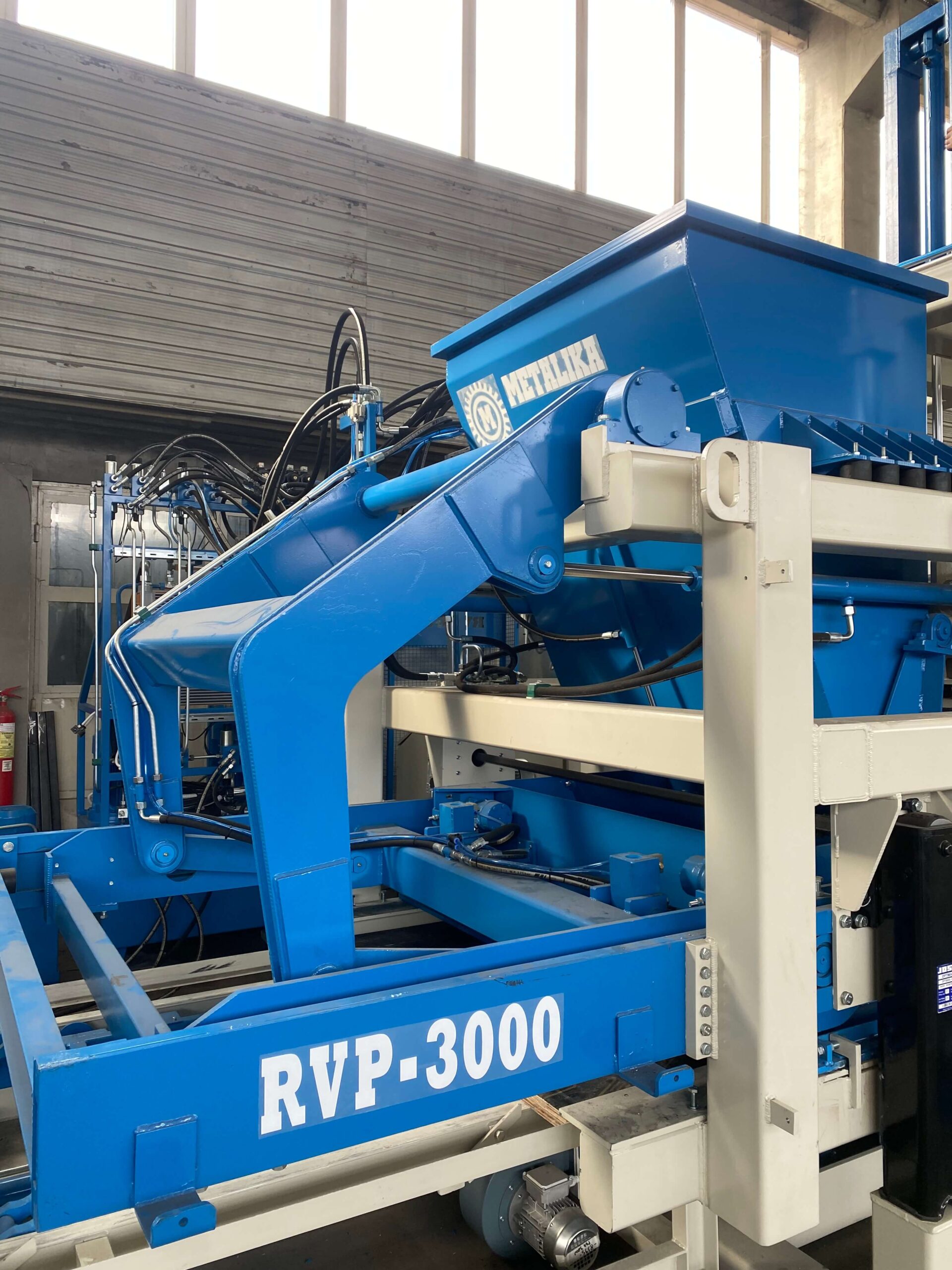

• RVP-3000 Concrete block machine have wide range of possibilities in manufacturing concrete products as: all kind of concrete blocks, concrete hollow blocks, concrete solid blocks, concrete hourdi blocks, concrete ecological blocks, concrete chimney blocks, pavers (pavestones), concrete bricks, curbstones, channels, grass pavers, splitted blocks, color-mix paving stones and other concrete products.
