Main Features

• Standard – Pallet feeder with the possibility to adjust the speed of the pallet feeder (slow start) – Hydraulic
• Option – Pallet feeder with the possibility to adjust the speed of the pallet feeder (slow start) – Electro / Frequency regulator
• Standard – Conveyor reception table for boards with concrete products + auxiliary receiving conveyor (for faster cycle)
• Standard – Face mix silo and base mix silo on machine
• Standard – Base mix filler box pneumatic scraper for concrete residue
• Standard – Face mix filler box scraper for concrete residue
• Standard – Agitator with hydraulic drive-in base mix filler box – rotation device in filler box, with 2 shafts, to decrease mold filling time (removable)
• Standard – Wear plates HARDOX – below face mix filler box
• Standard – Wear plates HARDOX – below base mix filler box
• Standard – “SINHRO” vibration technology, synchronized, frequency controlled.
• Standard – AUTOMATIC LUBRICATION SYSTEM of the vibrators with a temperature measurement system. The oiling system works in automatic mode.
• Standard – Automatic control unit for high productivity and safety (PLC and touch screen panel, high performance hydraulic power pack with two pumps, electromagnetic valves, safety sensors).
• Standard – Tamper head vibration
• Standard – Face mix filler box brush (tamper head cleaning)
• Standard – Base mix filler box brush (tamper head cleaning)
• Standard – Electric Vertical adjustment table plate and hoppers for base mix and face mix, when producing concrete product with different heights.
• Standard – Precise concrete product height control with 4 guides of mold
• Standard – Mold clamping, pneumatic (enables faster lower mold change and better vibration absorption)
• Standard – Hydraulic cooler
• Mold Change Cart – manually driven, are great help when crane is not available
• Option – Electrical opening face mix hopper when mold changing or for maintenance purposes.
• Standard – Modem link to “METALIKA” technical service sector (internet connection)
• Option – Tamper head clamping, hydraulic, with semi-automatic changing mold system with change cart (enables faster upper mold change)
• Option – Proportional valves with frequency reg. – on base mix filler box and face mix filler box to increase speed and durability by enabling smooth movement of concrete filler box.
• Option – Board pneumatic clamping on vibration table
• Option – Color Mix device for face mix
• Option – Color Mix device for base mix
• Option – Cross Cleaner device for tamper head

Technical data

• Board size 1200 x 550 mm
• Useful mold area 1130 x 500 mm
• Maximum useful mold surface 0.44 m2 in one print (20x20cm)
• Minimum product height 25 mm
• Maximum product height 400 mm / 350 mm curbstones
• Installed power 35 kW
• Voltage (V) 3×400
• Weight 12.000 kg
• Control Automatic
• Vibration technology “SINHRO” METALIKA
• Electric motors (Vibration table) ““LENZE” (IE3 type)
*The highest class of efficiency in electric motor consumption”

Capacity

• Paving stones 10x20cm (without face mix concrete): 1.100 m²
• Paving stones 10x20cm (with face mix concrete): 640 m²
• Concrete blocks (Hollow blocks) 20x20x40cm: 8.000 blocks

* All capacities are calculated as maximum – 100% efficiency for 8 hours of operation. When calculating the real production
capacities, it is necessary to take into account the actual efficiency factor, which is approximately 80%, due to other factors that can
affect productivity, such as: concrete (recipe of concrete), effective work of workers (with breaks), delivery of concrete in vibropress,
concrete product design, mold features, production pallet-pad features, settings on the vibropress.

Cycle

• Pavers 10x20cm (H-6cm) (with face mix concrete): 18 seconds
• Pavers 10x20cm (H-6cm) (without face mix concrete): 14 seconds
• Hollow block 20x20x40cm: 18 seconds

Concrete Product Range

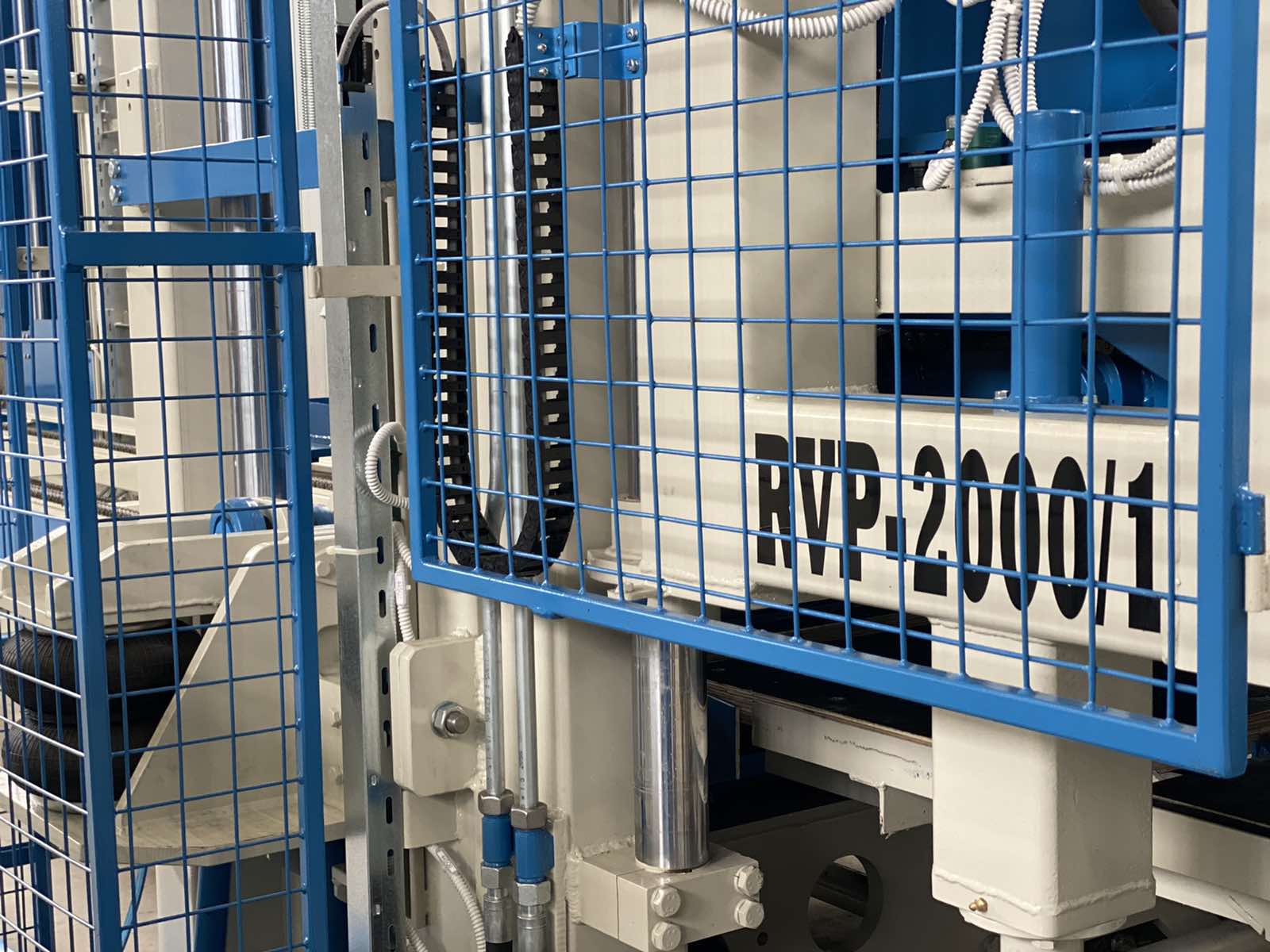

• RVP-2000 Block machine have wide range of possibilities in manufacturing concrete products as cement blocks all kind, hollow blocks, solid blocks, hourdi blocks, eco blocks, chimney blocks, pavers (paving stones, paving blocks), bricks, curbstones (kerbstone, road curbs), channels, grass pavers, splitted blocks (face blocks), multi color paving stones and other similar and special concrete products.
