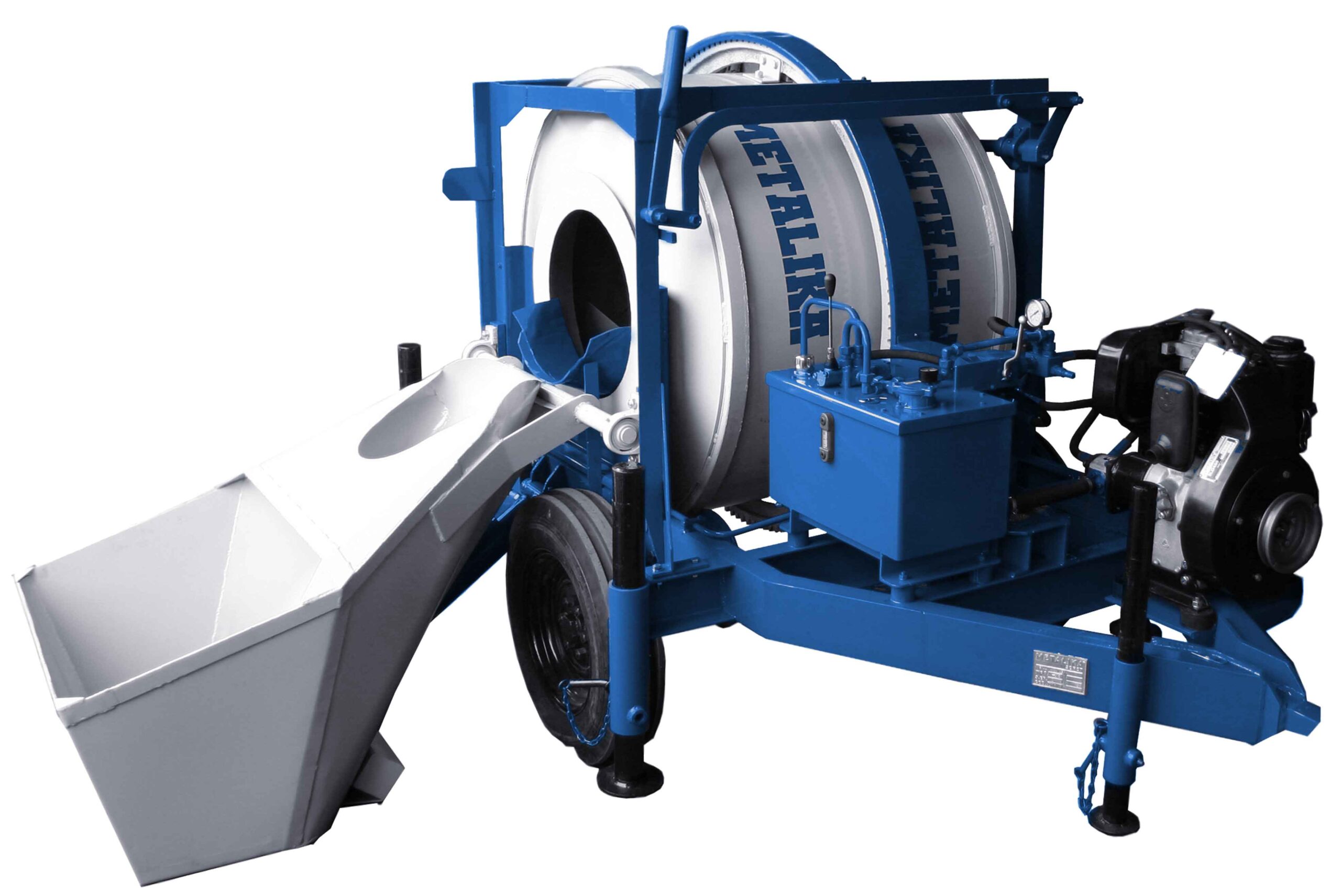

M-375

Concrete mixers.Electric or Diesel engine.

Technical data

TECHNICAL DATA FOR MOBILE CONCRETE MIXER M-375:



  • Max Volume: 375 lit.
  • Max concrete output per cycle: 250 lit.
  • Max capacity: 7-8 m3/h
  • Drive: Hydraulic

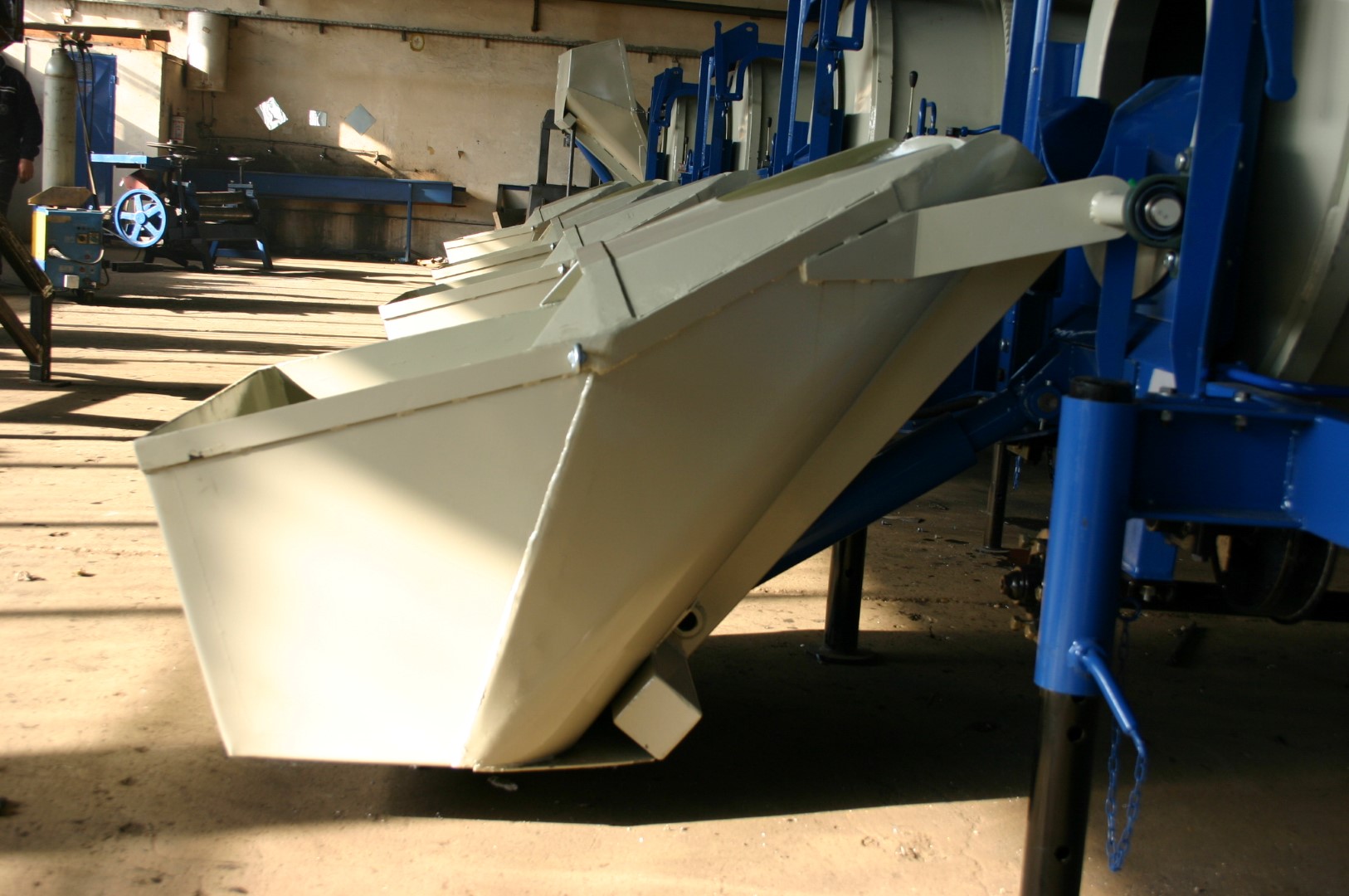

  • Feeding device: Basket
  • Concrete output: Via funnel
  • Weight: 1500 kg

Dimensions

  • Length: 2880 mm
  • Width: 2250 mm
  • Height: 2650 mm
  • Wheels clearance: 1400 mm

Diesel engine technical data:


  • Type: 3LD
  • Cooler: Air
  • Cylinder Capacity: 454 cm3
  • Power: 7 KW
  • RPM: 2800 o/min

Download M-375 Brochure
